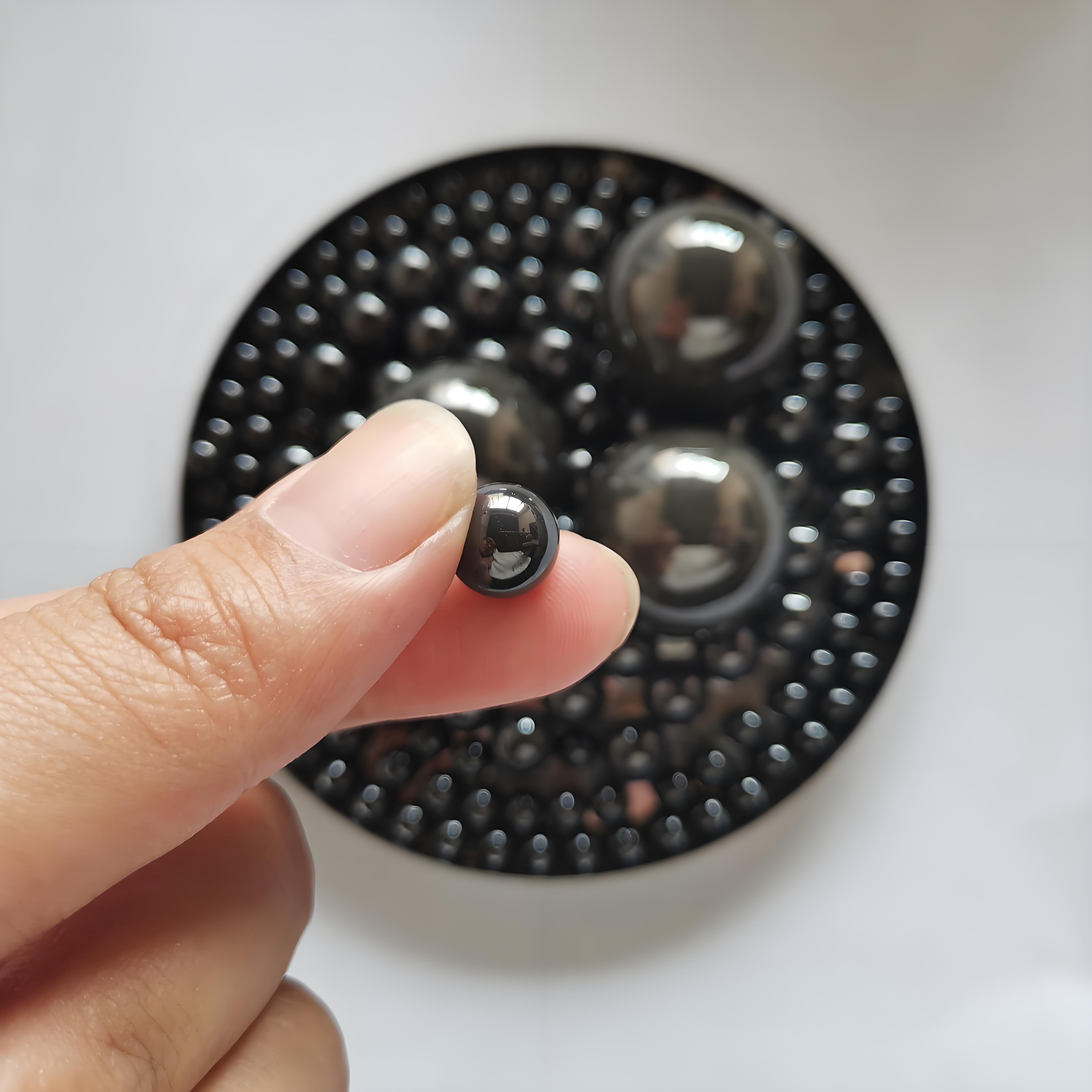

The surface of the silicon nitride ceramic ball is precision polished, has high gloss and mirror effect, and looks like a black "pearl".
The following is a detailed identification and analysis of this product:
1. Material identification
Appearance characteristics: The surface of the sphere is smooth and translucent, with strong reflection. Although silicon nitride ceramic balls are often gray in color, high-end grades after specific processes (such as hot isostatic pressing) will show this deep carbon black color, which is usually a sign of high quality, indicating that they have few surface defects and high density.
Eliminate interference: Although silicon carbide (SiC) is also a black ceramic, silicon nitride has a more "warm" texture and better toughness. It is one of the ceramic balls with the best overall performance.
2. Core features
This black ceramic ball is the "crown jewel of advanced ceramic materials" and has the following outstanding properties:
Ultimate performance: extremely high hardness, second only to diamond; density is about 1/3 of bearing steel, light weight, small moment of inertia, and can adapt to extremely high speeds (up to 600,000 rpm).
Environmental adaptability: high temperature resistance (strength can be maintained up to 1200°C), corrosion resistance (can withstand acid and alkali environments), and will not melt or oxidize at high temperatures.
Special properties: non-magnetic (insulating material), can be used in magnetic fields, has low friction coefficient and is self-lubricating.

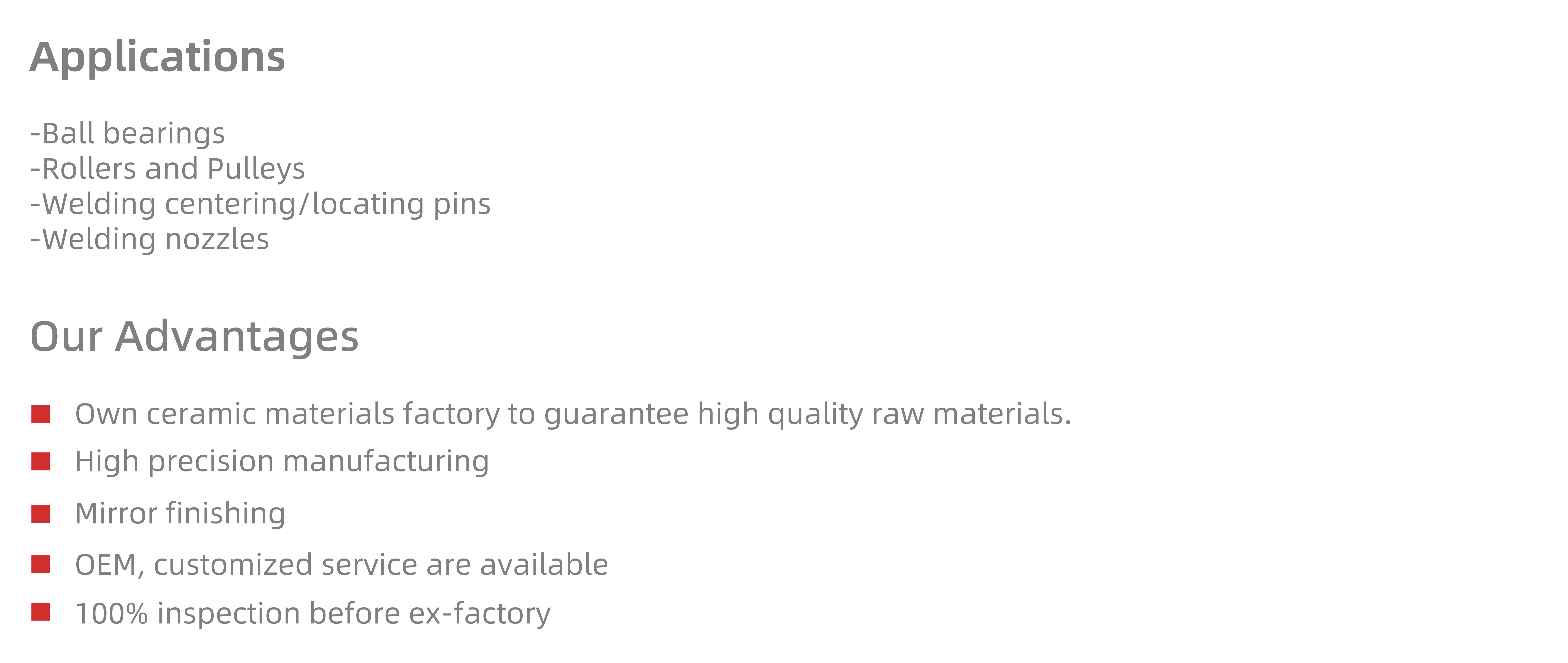

3. Main application areas
Due to its excellent comprehensive performance, this type of black ceramic ball is widely used in high-end industrial scenarios:
High-speed bearings: used in precision machine tool spindles, high-speed electric spindles, and dental handpiece (dental drill) bearings, which can significantly reduce vibration and noise.
New energy and aerospace: Bearings for new energy vehicles, wind turbines, and aerospace engine components.
Special working conditions: used as valve ball or measuring ball in chemical pumps, high temperature pumps, and metering pumps, especially in the pharmaceutical and food industries with strong corrosion or sterility requirements.
